3D Printing: A New Standard in Detail 3D printing technology delivers unparalleled detail that far surpasses conventional plastic or resin models. As with any cutting-edge technology, 3D-printed parts possess unique characteristics. We highly recommend reviewing the following advice before beginning your build to ensure the best possible experience.
Material & Color Consistency At ModellbauRay, our material selection is the result of exhaustive testing. While parts may arrive in transparent green, gray, black, or orange, these colors are chosen specifically to optimize the geometry of each individual piece. Rest assured, the mechanical performance and level of detail remain identical regardless of color. With a team holding advanced degrees in additive manufacturing, we have fine-tuned our process to guarantee consistency. If you have specific color requirements, please feel free to contact us.
Safety First: Handling & Preparation Our models are crafted from high-performance tough resins. Due to their extreme hardness, these materials can be brittle—similar to glass—and may splinter if subjected to shearing forces or excessive bending. While we have optimized our designs to minimize this risk, safety is paramount. We strongly advise wearing safety goggles and gloves during the assembly process to protect against potential splinters.
How to Remove Supports
Each 3D-printed component consists of the actual part and its necessary support structures. For clarity, please refer to the example of the Ersatz Yorck main tower below: the blue section represents the final model part, while the gray structures are the supports to be removed.
Step-by-Step Removal:
-
Identify the Attachment Points: Before cutting, carefully examine where the supports meet the model surface.
-
Use Precision Nippers: We recommend using sharp, high-quality model nippers. Cut the supports slightly away from the model's surface to prevent "pitting" or scarring the detail.
-
Sand for Perfection: Once the bulk of the supports are removed, use fine-grit sandpaper (e.g., 600–1000 grit) to gently smooth out any remaining nub marks.
-
Reminder: As mentioned in the safety section, these resins are rigid. Always cut with care to avoid splintering, and ensure you are wearing your safety goggles.
The actual product looks like this.↓
Use a sharp model knife to gently remove the support.
Spare Parts & Maintenance
Don't worry if a part seems particularly delicate—we have included extra spares for the most fragile components to ensure your build proceeds smoothly.
Assembly & Gluing Tips
Adhesive Choice: 3D-printed resin parts are best joined using Cyanoacrylate (Super Glue).
Gap Filling: For any minor seams or gaps between parts, UV-curable resin glue is an excellent choice for a seamless finish.
Painting & Bonding: While parts can be glued after painting, ensure the contact points are clean for the strongest bond. In some cases, pre-painting fine details can make the final assembly much easier.
Metal Components & Mast Construction
This kit includes precision copper tubes specifically for constructing the masts. Using metal ensures structural integrity and a realistic scale appearance. Please refer to the design diagram for the Ersatz Yorck below for assembly:

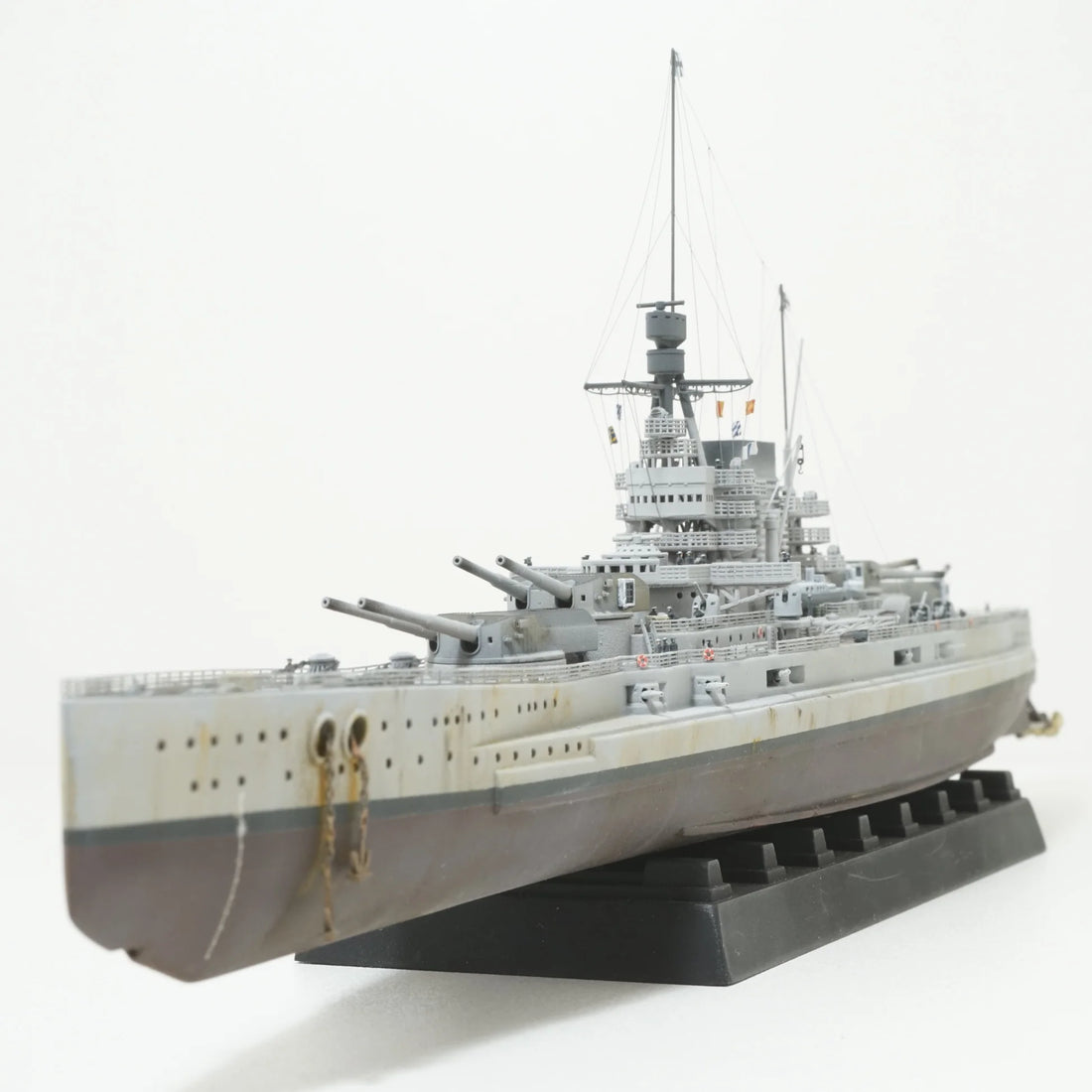

Here is an example of what Ersatz Yorck should look like when it is finished.↓
Unbuilt Legends: Unleash Your Creativity
Many of the vessels in this collection, such as the Ersatz Yorck, were historical designs that were never realized in person. This gives you the unique opportunity to act as the lead architect. Feel free to use the provided parts to create your own "what-if" version and bring these lost naval blueprints to life in your own style.
